Skorpion wiring diagram

[Hooperman999]

Where can I get a wring diagram for the Skorpion?

[dickl]

PM me with your address and I'll send you a photocopy - which model have you got?
Dickl

[lavrentyuk]

Given some of my wiring hassles recently if you have one could I ask for a copy please - a scan would do marvelously.

I have a Skorpion Sport, 2001.

I have never seen a wiring diagram for one and have been making it up as I go along. Fortunately they are fairly straightforward.

Richard

[Guesi]

Here is a wiring diagram:

Schaltplan_Skorpion_98.pdf

(964.41 KiB) Downloaded 1006 times

[lavrentyuk]

Thank you.

[DAVID THOMPSON]

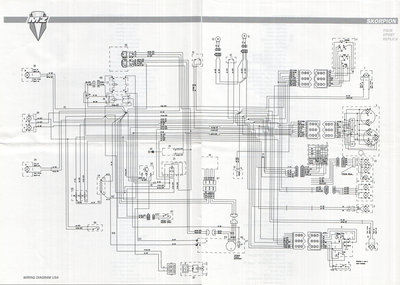

CLICK ON PIC TO MAKE IT BIGGER
relay 19 carrys it all

[edfmaniac]

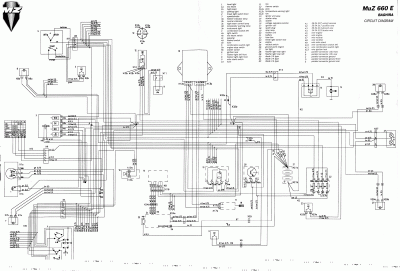

CLICK ON PIC TO MAKE IT BIGGER
relay 19 carrys it all

Note: This is for the Baggy. Probably going to differ from the Skorpion diagram.

[edfmaniac]

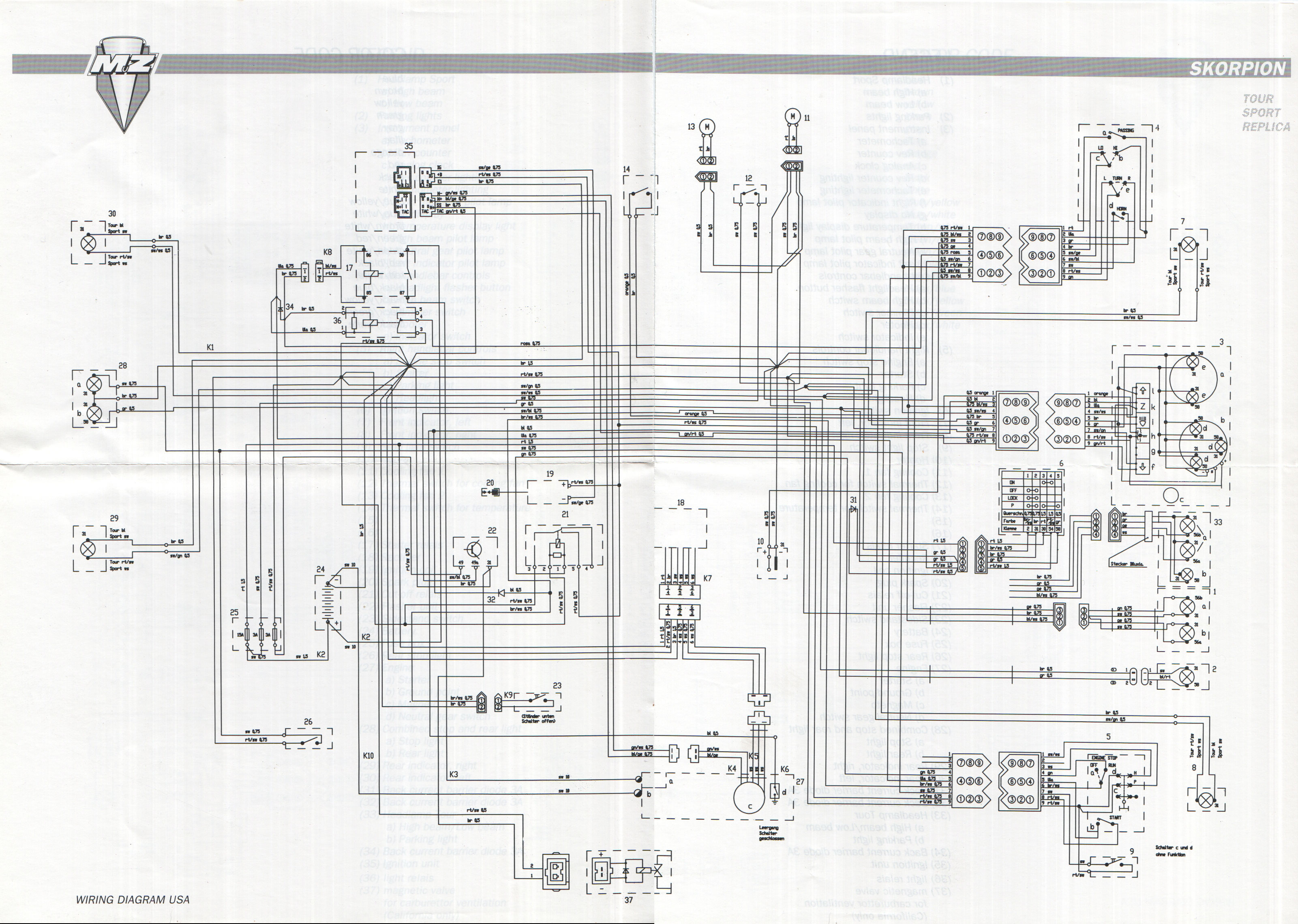

Here's one from an old thread on this site called "Wiring Diagram". I found it by Googling "mz skorpion wiring schematic".

[DAVID THOMPSON]

the main relay number is different rt125 drawings calls it 19 some 660 drawigs call it 30 others call it 21
it carries all the current and is not big enough over time so it dies
21 on above is the spark coil
and the drawings are reversed sides look where the tail lamps are on the two drawings
dave
my rt125 had it fried in the first year the traveller was sick when i got it rotax 500 does not have one or a side stand switch
